DREDGING PIPELINE:

LIHUI has great experience in producing dredging pipeline, dredging mud rubber hose, dredging suction rubber hose, dredging HDPE pipes and MDPE floaters.
Particular focus on supporting the entire dredging pipeline products’ design and development, Lihui has a professional workshop for dredging rubber hoses, HDPEpipes, MDPE floaters mold design and manufacturing.

Specification and size can be changed according to the customers’ requirements.

The entire dredging pipeline’s design, production and transportation are all completed by our organization, as long as the customers provide us some parameters, they must be satisfied with our high-quality dredging pipeline.

Lihui can design the entire dredging pipeline according to customers’ requirements. Lihui entire dredging pipeline has manyadvantages:

good flexibility, super wear-resistant, low transport resistance, super buoyant, easy to install and reusable, etc., So Lihui dredging pipeline can be used for a long time and difficult to sink. Customers will achieve the perfect result and the lowest cost if choose us.

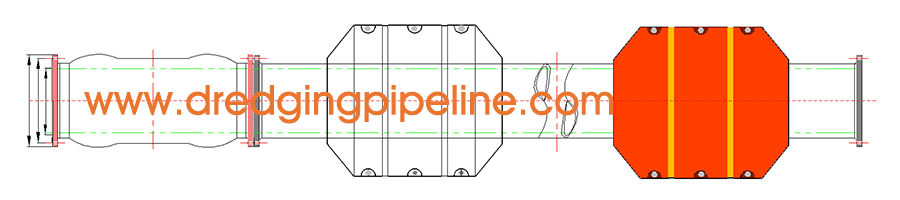

STRUCTURE OF LIHUI ENTIRE DREDGING PIPELINE:

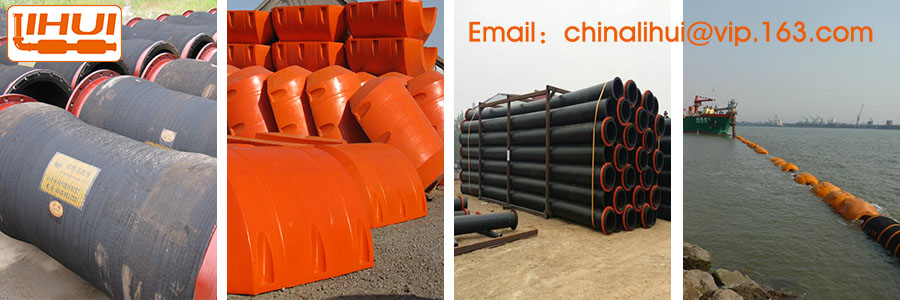

1. Dredging rubber hoses:

Lihui Dredging rubber mud hoses and suction hoses are made from natural rubber, strong textile fibers, steel skeleton and synthetic rubber which produced by multi-channel production process. With superior abrasion resistance, high working pressure and strong flexibility, they can be bent freely in the water and used for long time. Flanges are fixed on both sides of the dredging rubber hose ,So it’s easy and quickly to install.
(Total Length≤100000mm;Working Pressure and Flanges can be customized)

2. Floaters:

Lihui floaters are made from the rotational molding by one time.
They are made up by strong MDPE shell with the special foam filling inside.
So they can be attached around the hoses and will never absorb the sea water .
Lihui Floaters are very light and easy to be installed;
They are flexible and difficult to be broken. Lihui Floaters have big buoyancy so they could help the dredging pipes keep floating on the sea. They are orange color with eye-catching in order to reduce accidents on the sea.
Specification and size can be customized.

3. High Density polyethylene dredging pipes:

With non-toxic, odorless ,good heat and cold resistance, Lihui HDPE pipes are made from high density polyethylene by one time. They have high rigidity and toughness, with little resistance but high mechanical strength. Lihui HDPE pipes have ultra-high wear resistance, abrasion degree is 4-8 times of steel pipe, useful life can reach more than five years. Lihui HDPE pipes are very light so they are convient to install and transport and then save construction time.
(Total Length≤120000mm;Working Pressure and Flanges can be customized)

4. Other Accessories:

Flange material: steel forging;
Bolts, nuts and washers: galvanized;
Rubber gasket: NBR (thickness of 5-12mm)
