High molecular polyethylene dredging pipe:
With non-toxic, odorless ,good heat and cold resistance, this pipe is made from high molecular polyethylene by one time. It has high rigidity and toughness, with little resistance but high mechanical strength. It has ultra-high wear resistance, abrasion degree is 4-8 times of steel pipe, useful life can reach more than five years. It is very light so it’s easy to install and transport and then save construction time.
（Total Length≤120000mm；Working Pressure and Flanges can be customized）
Suction dredging plastic pipe

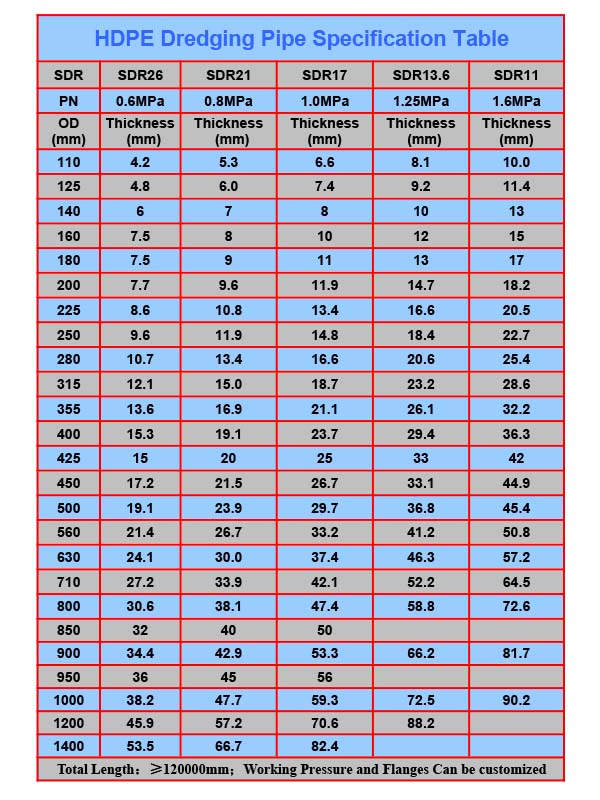

LIHUI HDPE Dredge Pipe Specifications:
1. HDPE Pipeline for dredging.
2. DN: 90mm-1200mm.
3. PN: 4-16 (0.4-1.6MPa).
4. Color: white, black, or upon request.
LIHUI HDPE Dredge Pipe Feature:
HDPE pipe for water supply or sand dredging.
1.Long lifespan, more than 50 years under normal condition
2.Good corrosion resistance, resisting variety of chemical mediator.
3.Good crack growth resistance.
4.Little coefficient of friction and low flow resistance.
5.Excellent wear resistance, its wear resistance is 4 times higher than steel pipes under normal conditions.
6.Good solder ability, its interface strength is higher than the pipe body.
7.Good flexibility and anti-scratch ability.    8.Very high impact resistance.
9. The unique resistance to low temperature, workable at temperature - 40-60 ° c.
10. Light weight, 1/8 weight of steel pipe, easy for transportation and installation.
11. Flexible metal flange for connection, easy for installation and disassembly.
12. Smooth inner wall, easy for pipeline transportation.
LIHUI HDPE Dredge Pipe Appliances:
1. Transport sand\mud\slurry for dredger in dredging projects or sand suction projects and also for seawater treatment projects.
2. Transport mine tailings and slurry, metallurgical mines in the mining industry.
3. Transport pulverized coal and coal-water slurry of coal preparation plant in the coal industry.
4. Transport mud and corrosive media with slag in the chemical industry .
5. Transport powder and coal ash in thermal power plant
6. Transport crud oil, petroleum.
Standard of HDPE pipe: ISO4427,EN12201,ASTM F714,AS4130,CE,GB/T13663-2000
HDPE dredge pipe Applications:
1. Transport sad and dirty water from the river
2. Used to conveyor mud and from the pond
3. Used in to deliver slurry, mud, sad etc in dredging projects.
HDPE dredge pipe Features:
1. Health: nontoxic, not scaling. It does not contain heavy metal additive and will not breed bacterium
2.Chemical resistance
3.Size:16mm to 1400mm
4.Thickness:2.3-102.9mm
5.Pressure Rating:
0.6Mpa,0.8Mpa,1.0Mpa,1.25Mpa,1.60Mpa
6. Color: Black, blue or other colors on request
7.Connection:socket fusion joint, butt fusion joint, electro fusion joint, flanged joint
8.Standard:GB/T13663-2000
9.Certification:ISO9001:2008
HDPE dredge pipe Performance:
1.HDPE Sand Delivery Pipe has good flexibility, tensile strength and elastic, pipe extrusion, pack, it doesn't break after internal and external force impact, Plastic pipe can be directly connected, in the water it can bend, 4-8 pieces can bend 360 degrees. Good resistance of stormy waves, On land of connection, the concave-convex is within 30 degrees of area, can be connected directly, it does not need to repair ground of surface.

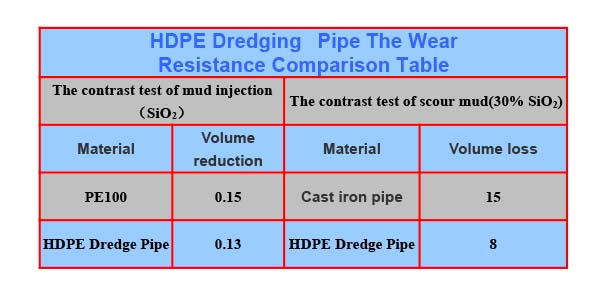

2.HDPE Sand Delivery Pipe has good wear-resistance, it is 4-8 times of steel pipe, use longer, Piping material of corrosion resistance is strong, can soak in sea water for 50 years with no change, Anti-uv, anti-aging, and it can be used for 5-8 years upon sand content.

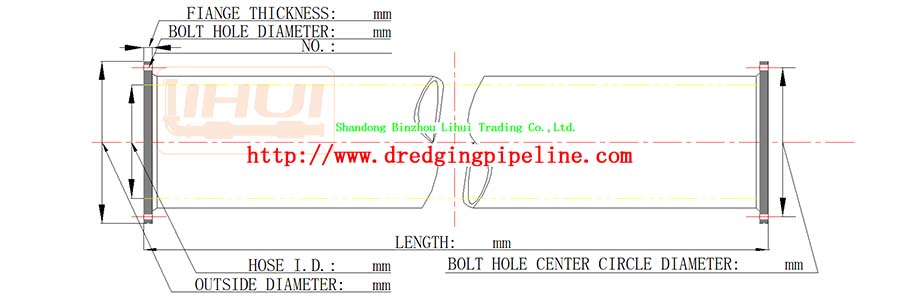

3.HDPE Sand Delivery Pipe is assembled with two metal activity flanges at both pipe ends. The entire pipe is without any weld, pipe and pipe are connected by flanges of bolt., Steel pipe lining, can ensure pipe will not deformation and drip when installation and disassembly, ensure transportation engineering of high efficiency.
4.HDPE Sand Delivery Pipe has smooth outer and inner wall, friction coefficient is tiny, high transmission efficiency than steel pipe 20% to 30%, temperature is used at - 40-60 ° c, can adapt to bad weather changes in temperature.
5.HDPE Sand Delivery Pipe is either on land or water for using, total engineering cost is low, high efficiency, safer, and more convenient.
If you want to know more information about our products
pls feel free to contact me and welcome to visit our factory.
Dredge pipe standards certificate
