1.excellent abrasion resistance
2.UV protection
3.prevent water absorption
4.inner diameter:500mm-1100mm
Floating discharge hose
Specification:
|
Inner Diameter (mm) |
500 |
600 |
700 |
800 |
900 |
1000 |
110 |
|
Working Pressure (Mpa) |
1.2 |
1.5 |
1.5-2.5 |
1.5-2.5 |
1.5-2.5 |
1.5-2.5 |
2.5 |

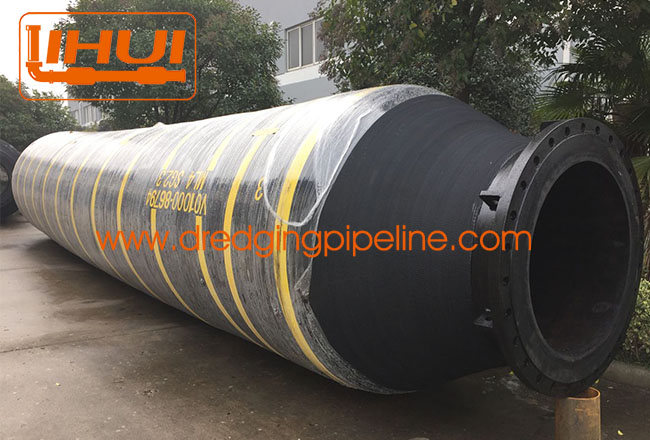

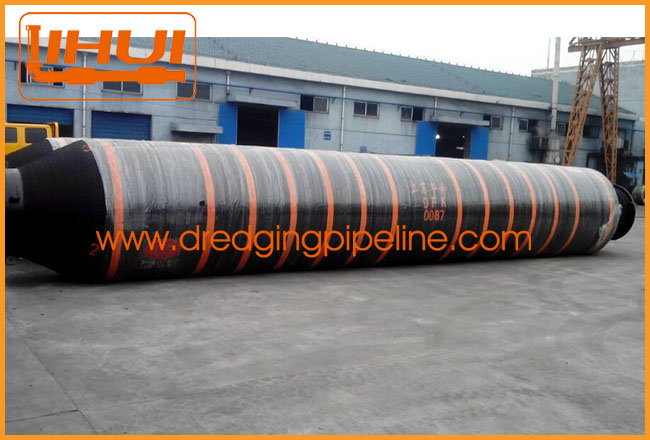

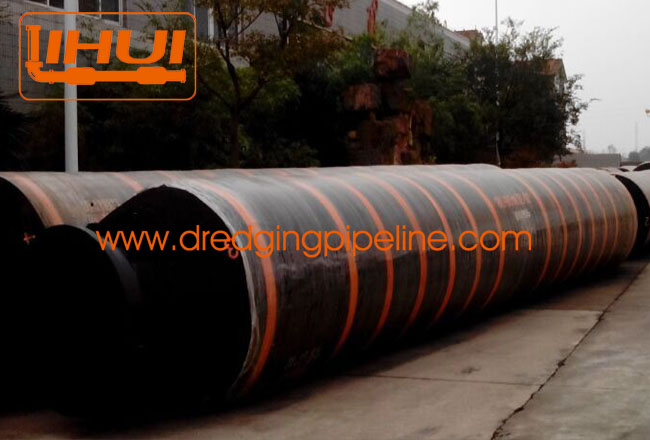

Floating discharge hoses:
Floating discharge hoses are used with dredgers for silt/gravels conveyance. The suitable conveyance matters are usually mud, clay, fine sand, fine-mid sand and so on. The suitable working temperature is from -20°C to +50°C.
Features:
1. Inner cover with excellent abrasion resistant and high quality. Wearing colored indicator layer
2. Single foam floatation casing, preventing water absorption
3. The hose emergence above water is not less than20% of the total volume (according to the customers’ request)
4.outer cover with excellent ageing resistance and corrosion resistance.
5. can withstand the high pressure of work,
6. Bending angle: in working condition, the bending angle is from 0°-45°.
7. Low centre of gravity, strong ability of the anti-wave, good stability.
With the deep understanding of the floating discharge hoses, the advantages of convenience and stability have been recognized by most of manufacturers. And execution of floating discharge hoses at sea becomes more and more.
